The palette of materials that can be used as 3-D printing “ink” is quickly growing in diversity, but one ubiquitous material has, until now, been absent: transparent glass. Researchers have cracked the challenge of printing glass through a nozzle.

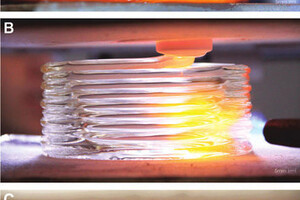

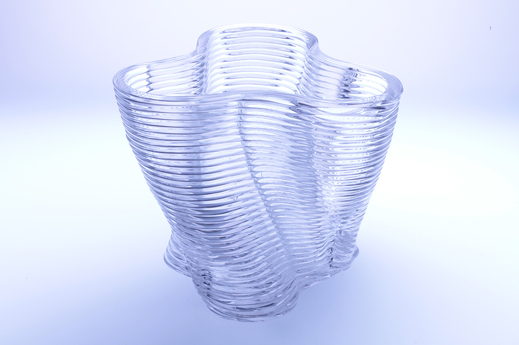

It’s already possible to use tiny granules of glass in a powder bed with conventional 3-D printing techniques like jetting and sintering, but the products turn out opaque. Now researchers at MIT have demonstrated the first-ever machine that can print molten glass through a nozzle and make transparent glass objects layer by layer according to digital instructions. The most challenging aspect of printing glass is that it must happen at extremely high temperatures. To flow well enough to be extruded through a nozzle, the material must be kept at a temperature greater than 1000 °C.
To achieve this, the printer needs separate heating systems for each stage of the manufacturing process. The molten glass ink is housed in a crucible above the nozzle, where heating coils maintain the desired temperature. The glass flows from the crucible into a custom nozzle, where separate heating coils keep it hot enough to flow and without sticking to the inside. Finally, objects are built inside a third heating chamber, which is kept just above the temperature at which the glass turns solid. This allows the printed objects to be cooled in a gradual, controlled way so that they don’t break.
Finding a nozzle suitable for printing glass was a complicated task, according to Peter Houk, head of MIT’s Glass Lab. To work it must be made of a material that can both handle high temperatures and resist the glass sticking to it. “At these elevated temperatures almost everything wants to stick to glass,” says Houk. Platinum nozzles are used in industry for some glass manufacturing processes, but are very expensive. Instead the group settled on a custom-made nozzle made of aluminum oxide.
The machine prints soda lime glass, a family of glasses used in everything from water glasses to windows. But glasses like Pyrex could in principle be printed this way too, albeit at much higher temperatures. Houk says he and his colleagues are still working to understand the design constraints imposed by the printer, including the angles at which it’s possible to print and still maintain structural integrity, and the turning radius of the motorized printing apparatus. The group is also working to better understand the mechanical and optical characteristics of the printed objects.
